Sandboxes

Why do we need sandboxes?

Experimentation and iteration, it's way faster to experiment on a small program than on a real project.

I used this in:

• https://github.com/kubernetes-sigs/sig-storage-local-static-provisioner - To prove some theories about running powershell commands from the context of the container, by isolating the commands and running them in a small go program I could iterate way faster than redeploying the local-static-provisioner app.
• My experiments with client-go

Setup

• Verify that you have these version of delve and skaffold installed

skaffold version
v2.1.0

dlv version
v1.20.1

• add this line to ${XDG_CONFIG_HOME}/dlv/config.yml (docs), read Can not set breakpoints or see source listing in a complicated debugging environment for more details

substitute-path:
  - {
      from: /go/src/github.com/mauriciopoppe/kubernetes-playground/,

      # Alternative if the debugger is launched from a different workspace
      # to: /Users/mauriciopoppe/go/src/github.com/mauriciopoppe/kubernetes-playground/
      to: ./,
    }

• create the namespace for the app

kubectl create namespace sandbox

• run skaffold in one terminal

skaffold debug -f cmd/hello-world-linux/skaffold.yaml

Connecting to the process with delve connect

# NOTE: make sure that you're in the project root
$ pwd
/Users/mauriciopoppe/go/src/github.com/mauriciopoppe/kubernetes-playground

$ dlv connect localhost:56268

(dlv) l main.main
Showing /go/src/github.com/mauriciopoppe/kubernetes-playground/cmd/hello-world-linux/main.go:25 (PC: 0x1160180)
    20:         // version is filled by an ldflag (see the Dockerfile)
    21:         version    string
    22:         kubeconfig = flag.String("kubeconfig", "", "Absolute path to the kubeconfig file. Required only when running out of cluster.")
    23: )
    24:
    25: func main() {
    26:         klog.InitFlags(flag.CommandLine)
    27:         flag.Set("logtostderr", "true")
    28:         flag.Parse()
    29:         klog.Infof("Version %+v", version)
    30:

(dlv) b cmd/hello-world-linux/main.go:46
Breakpoint 1 set at 0x11aa794 for main.main() ./cmd/hello-world-linux/main.go:46

(dlv) c
> main.main() ./cmd/hello-world-linux/main.go:46 (hits goroutine(1):1 total:1) (PC: 0x118b754)
    41:                 os.Exit(1)
    42:         }
    43:
    44:         for {
    45:                 ns1, err := kubeClient.CoreV1().Namespaces().Get(context.TODO(), "kube-system", metav1.GetOptions{})
=>  46:                 klog.Infof("Hello world from linux! My name is Mauricio")
    47:                 klog.Infof("ns1=%+v err=%+v\n", ns1, err)
    48:
    49:                 time.Sleep(time.Second * 10)
    50:         }
    51: }
(dlv) p ns1
*k8s.io/api/core/v1.Namespace {
        TypeMeta: k8s.io/apimachinery/pkg/apis/meta/v1.TypeMeta {Kind: "", APIVersion: ""},
        ObjectMeta: k8s.io/apimachinery/pkg/apis/meta/v1.ObjectMeta {
            Name: "kube-system",
...

Connecting to the process with nvim and nvim-dap

The setup requires this plugin:

• https://github.com/mfussenegger/nvim-dap

The setup for nvim-dap that I have is this one, it's a little bit different to the one in https://github.com/mfussenegger/nvim-dap/wiki/Debug-Adapter-installation#go-using-delve-directly and adapted to connect to a remote process if request = "attach"

local dap = require "dap"
dap.adapters.go = function(callback, config)
  local stdout = vim.loop.new_pipe(false)
  local stderr = vim.loop.new_pipe(false)
  local handle
  local pid_or_err
  local host = config.host or "127.0.0.1"
  local port = config.port or "38697"
  local addr = string.format("%s:%s", host, port)
  if config.request == "attach" and config.mode == "remote" then
    local msg = string.format("connecting to server at '%s'...", addr)
    print(msg)
  else
    local opts = {
      stdio = {nil, stdout, stderr},
      -- To enable debugging:
      -- - Uncomment the following line
      -- args = {"dap", "-l", addr, "--log", "debug", "--log-output", "dap", "--log-dest", "/tmp/dap.log"},
      -- - Check ~/.cache/nvim/dap.log (I saw set breakpoint errors here)
      args = {"dap", "-l", addr},
      detached = true
    }
    print(config)
    print(opts)

    handle, pid_or_err = vim.loop.spawn("dlv", opts, function(code)
      stdout:read_stop()
      stderr:read_stop()
      stdout:close()
      stderr:close()
      handle:close()
      if code ~= 0 then
        print("ERROR: dlv exited with code", code)
      end
    end)
    assert(handle, "Error running dlv: " .. tostring(pid_or_err))

    stdout:read_start(function(err, chunk)
      assert(not err, err)
      if chunk then
        vim.schedule(function()
          require("dap.repl").append(chunk)
        end)
      end
    end)
    stderr:read_start(function(err, chunk)
      assert(not err, err)
      if chunk then
        vim.schedule(function()
          require("dap.repl").append(chunk)
        end)
      end
    end)
  end

  -- Wait for delve to start
  vim.defer_fn(function()
    callback({ type = "server", host = host, port = port })
  end, 100)
end

dap.configurations.go = {
  -- debug remote process
  {
    type = "go",
    name = "Debug remote",
    debugAdapter = "dlv-dap",
    request = "attach",
    mode = "remote",
    host = "127.0.0.1",
    port = "56268",
    stopOnEntry = false,
    substitutePath = {
      {
          from = "${workspaceFolder}",
          to = "/go/src/github.com/mauriciopoppe/kubernetes-playground",
      },
    },
  },
}

Assuming that the cmd/<demo> application is running you can already connect to it, first let's set some breakpoints, in Neovim go to the source code of the program chosen and set as many breakpoints as wanted with:

:lua require("dap").toggle_breakpoint()<CR>

Next run the application with delve in attach mode (the configuration above), it'll ask you which configuration to run:

:lua require("dap").continue()<CR>

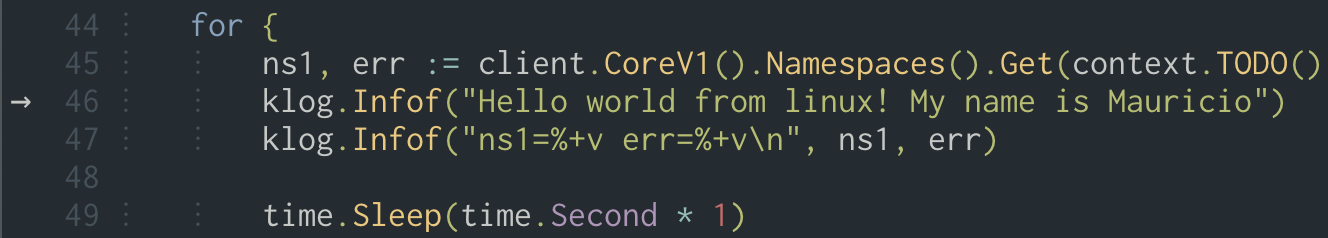

If everything went right you should see an arrow on the left of the number line showing that the application paused at that point.

Debugging with nvim-dap-ui

This step requires this plugin:

• https://github.com/rcarriga/nvim-dap-ui

Configure it as follows:

function _G.dap_preview_scopes()
  opts = {
    width = 200,
    height = 15,
    enter = true,
  }
  dapui.float_element("scopes", opts)
end

-- preview window under cursor
vim.api.nvim_set_keymap('n', '<Leader>bp', ':lua dap_preview_scopes()<CR>', { noremap = true, silent = true })

Continuing on the steps above and assuming that your application hit a breakpoint you can simply open a floating element for the debugger with <Leader>bp or your favorite mapping.

Demos

• cmd/hello-world-linux - Accessing the API server from a pod.
• cmd/hello-world-windows - Works only in windows nodes, same as hello-world-linux but with a windows binary.
